WINPICS Makes manufacturing ideas real, fast.
Wallis Imagineering NPICS, Corp. The original miniature electronics developer in the Chicago region for successful NPI.
About Us
Since 1989 The WINPICS Model Shop has participated in world changing development from 25 pin through USB.

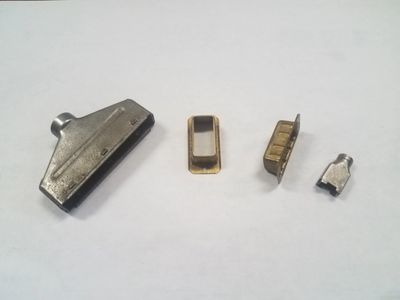

Our work can be found the world over in things like Cell phone towers, Cellular & Satellite phones, Military and Consumer Wafers for High Speed Routers, Boeing Jets, Springs, Terminals, Lead Frames, Shielding and Wire forms, Pacemaker, Insulin Pump & Glucose Meters, Sports Medicine inserts, handhelds and more.
Tooling Design, Build & Debug

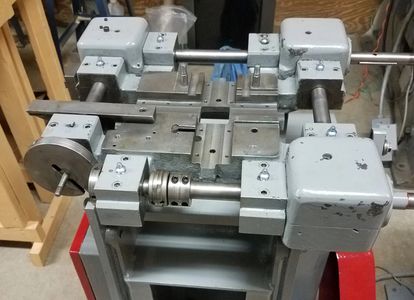

We design & develop challenging products and tooling for stamping & automation assembly using reel to reel stamping to drive efficient insert molding & automation assembly including machine refurbishment to support products Made in The USA.
Return On Investment
We do what we can to increase production through creativity and broad experience in a variety of industries and manufacturing processes. In many cases we successfully combine existing process in ways that others may not consider resulting in the most successful programs possible thereby improving bottom lines.
State of the Art heat sink design & manufacturing services
Heat Sinks Stamped and Assembled via Automation
For the past few years WINPICS has been designing and developing electronic thermal management products and proprietary manufacturing processes that will reduce the weight size and improve performance of heat sinks used in high volume passive and active applications.
We offer 2 or more part designs that eliminate the need for die casting, extruding of metal and machining allowing us to produce thin fin heat sink assembles with options like vent holes, water pipe holes and mounting holes prior to forming then use pick & place to put parts into an automation assembly, inspection and packaging cell.
Our mission is to provide customers in many industries with solutions to their most demanding new programs and existing programs that need a fresh set of eyes to improve production processing with reduced maintenance and higher parts per hour production rates..
It is our goal to provide every customer with products and manufacturing processes that meet or exceed their requirements and expectations.
At WINPICS we provide design engineers and inventors with ideas that help bring their products to market fast.
Learn More
Our heat sinks weigh 20 % less than die cast or extruded heat sinks and will cost less in high volume.
